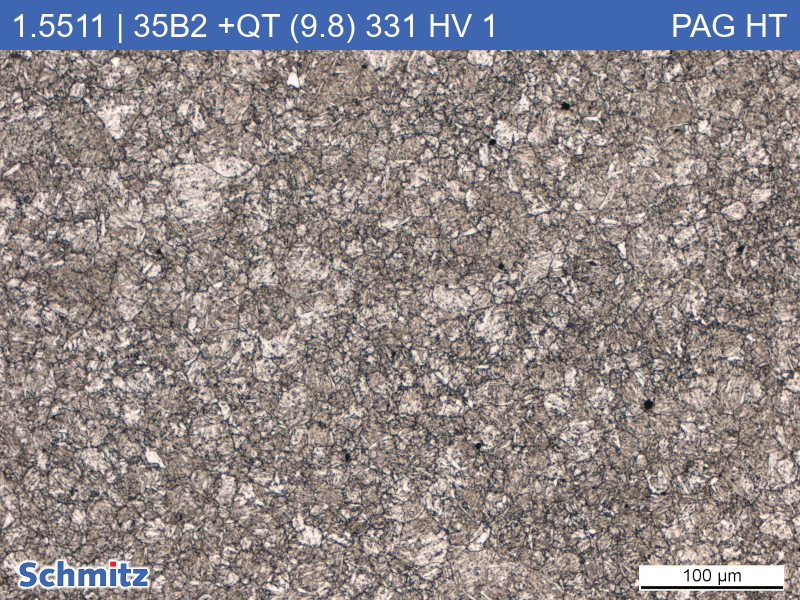

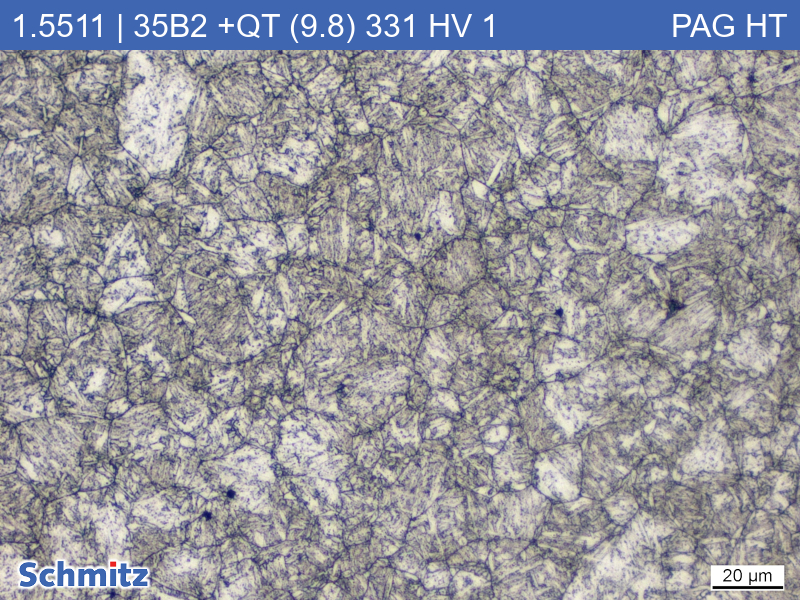

1.5511 | 35B2 +QT (9.8) Prior austenite grain boundaries
| Numeric designation | 1.5511 |
|---|---|
| Chemical designation | 35B2 |
| State | +QT (9.8) Prior austenite grain boundaries |
| Etching | PAG HT |
The highly tempered and Cr-free screw material was successfully etched onto former austenite grain boundaries using “PAG HT”. The copper precipitate is polished off on a stationary, wet OPS disc (ChemTec). Depending on the alloy, 25% ammonia and a cotton swab are required to remove the copper precipitate.
Parameters:
- Etchant PAG HT (made by Schmitz)
- 3 min
- room temperature
Click here to go to the article in our online shop
Fe-Base
1.1221 | C60E +QW +T Prior austenite grain boundaries
1.1191 | C45E +QW +T Prior austenite grain boundaries
1.7220 | 34CrMo4 +Q Prior austenite grain boundaries
1.7220 | 34CrMo4 +QT (12.9) Prior austenite grain boundaries
1.7076 | 32CrB4 +QT (12.9) Prior austenite grain boundaries
1.5507 | 23MnB3 +Q Prior austenite grain boundaries
1.5507 | 23MnB3 +QT (10.9) Prior austenite grain boundaries
1.5507 | 23MnB3 +QT (8.8) Prior austenite grain boundaries
1.5507 | 23MnB3 +QT (11.9) Prior austenite grain boundaries
